A Lyrical Tale of the Beauty and the Beast



Thivan Labs artfully combines a very distinctive and minimalist, highly functional and bold Bauhaus aesthetic with an unmistakable sonic identity … one that, with disarming honesty, infuses the “system equation” with a rich and lyrical narrative … a sonic narrative that is beguilingly poetic in cadence, such that the more you listen, the more lyrical the musical journey becomes !

THIVAN LABS DL-50

SINGLE-ENDED TRIODE TUBE AMPLIFIER

Thivan Labs logo.png

THIVAN LABS DL-5 ROBIN

Thivan Labs DL50 Front_auto_x2.jpg

Thivan Labs DL-50  ROBIN

6AS7 / 6H13C Integrated Amplifier

Output power : 2x15W
Class of operation : PPP (class A)
Tube complement :

4x 6H13C/6AS7, 2x 6N2P/12AX7, 2x 6SN7
Inputs : 2x RCA , 1x XLR

Remote : Yes
Outputs : 4,6,8,16 ohm

Input sensitivity :
0.8V rms
Frequency bandwidth : 3Hz-75KHz (-3dB)
Input impedance : 100K
Power consumption : 210VA

Size : 450×400 x290mm
Weight : 31kg (68 lbs)



Hardwired Point-to-Point Circuit

$ 6,250
/ DD-P $ 5,220

The DL-50 Anniversary Integrated is a design that has benefited from years of research and development at ThivanLabs.



All the technology and know-how of the past 15 years has been incorporated into the DL-50 Anniversary edition, with the sole aim of extracting the highest possible sound quality from its design topology. Its 2 x 15 Watt from a Class A push-pull circuit (30 Watt peak per channel), and its 4, 6 ,8 and 16 ohm output taps, allow the DL-50 Anniversary to control almost all loudspeakers currently available on the market without any problems.



As is customary with ThivanLabs amps, the transformers are heavily oversized, and sport very high quality metallurgy, which is what makes this amplifier's superior sound quality possible. Total weight ? No less than 31 kg !



The DL-50 Anniversary is built entirely by hand using a point-to-point method. This results in an extremely durable and reliable amplifier ... one that can operate 24/7 continuously and that is unconditionally stable.



It's tube compliment -- 4 x 6H13C/6SA&/6080 power tubes driven by 6SN7s, can be qualified as being "recherché" ... French for rare, sought after, exotic and refined. It's sound can be characterized as having enormous dynamic articulation, drive-power, and an impressive command of detail and space ... fantastically beautiful vocals, a deep and tight lower spectrum, and silky highs."

DL-50-Hero Shot 1_auto_x2_toned_light_ai.jpg

... about the tubes ...



... "to roll or not to roll" ...

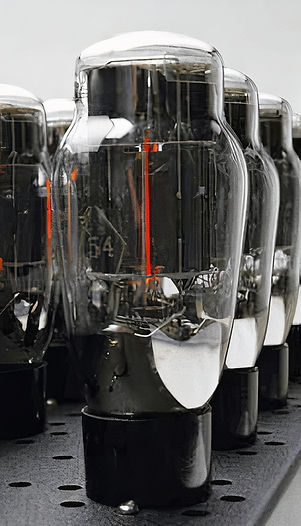

6H13C
TUBE

More info on tubes and rolling equivalents

6as7 tube_auto_x2_toned_light_ai.jpg

Substitutes
6AS7
6080
6520
5998
6N5P



What they say ...



Coming soon ...
